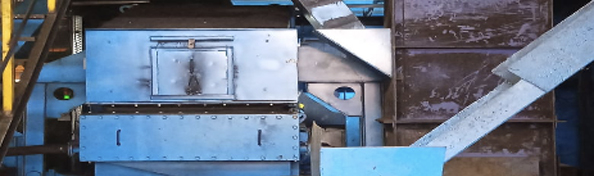

Moulding Line -1
In order to enhance production rate and to bring in technological advantages to meet the following present day expectations of the customer, M/s Savelli made F1-Simplex High Pressure Moulding line has been installed with DISA make automated sand mixer having SMC.
| Sl.No | Equipment | Make | Capacity / Specification |
|---|---|---|---|
| 01 | F1-flask Simplex High Pressure moulding line, equipped with Automated sand plant having DISA TM240-90 mixer having SMC | M/s Savelli, Brescia, Italy |
a) Single station Type F1-Simplex b) Multi piston squeezing head with hydraulic compaction up to 12 kg/cm² c) Cycle time of the machine – 60 sec d) Mould box size 750x750x300/300 mm e) DISA TM 240-90 mixer with capacity 1400 MT/batch |

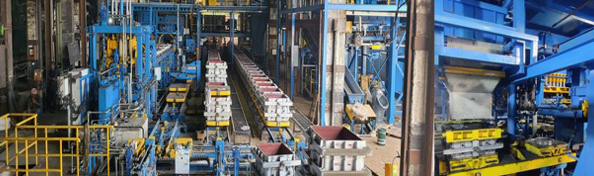

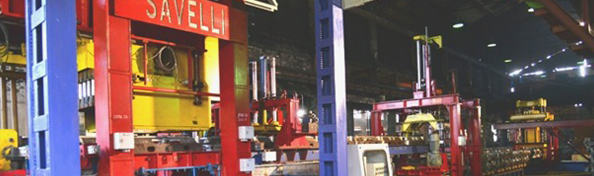

Moulding Line -3
In order to further enhance production rate and to bring in technological advantages to meet the present day expectations of the customer, M/s Savelli made F2-Simplex High Pressure Moulding line has been installed with automated sand mixer with SMC.
| Sl.No | Equipment | Make | Capacity / Specification |
|---|---|---|---|
| 01 | F2-flask type High Pressure moulding line, equipped with automated sand plant having mixer with SMC | M/s Savelli, India |
a) Single station, Type F2-Multi-Piston b) Multi piston squeezing head with hydraulic compaction up to 12 kg/cm² c) Cycle time of the machine – 90 sec d) Mould box size 750x750x325 / 225 mm e) Mixer with capacity 1200 MT/batch |
Moulding lines -2 & 4
Apart from High Pressure Moulding automated line company also have two mechanised moulding lines with Jolt-Squeeze machines, Individual sand plants as detailed below.
| Moulding Line – 2 & Moulding Line – 4 | Area : 8000 Sq. Ft | |||
|---|---|---|---|---|
| Sl. No | Equipment | Make | Quantity | Capacity / Specification |
| 01 |
SMFA 300 Moulding m/cs SMFA 450 Moulding m/cs |
Sarvamangala |
2 No.s 2 No.s |
300 Kgs – Jolting 450 Kgs – Jolting |
| 02 | Moulding Boxes – Line 2 | T.S Foundry Equipment | 60 Sets |
520x500x220 Cope 520x500x220 Drag |
| 03 | Moulding Boxes – Line 4 | F Care | 80 Sets |
650x650x250 Cope 650x650x200 Drag |
| 04 | Intensive sand mixer | Uquipment | 2 No.s | 6250 Kgs/Hr, 250 Kgs/Batch |
| 05 | Casting weight range/box | ----- | ---- | 2–20 Kgs / 20–55 Kgs |
