CNC Machining facility
Trusted services that drive performance
CNC Machining facility

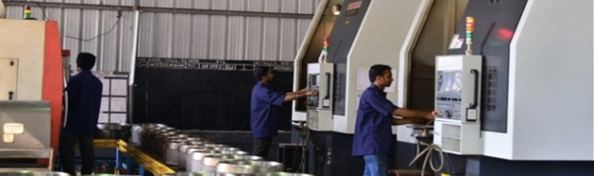

The company has a state of art in-house machining facility with CNC machines for machining Brake drums assuring high dimensional accuracy, repeatability and surface finish.
| In-House CNC machine shop at Nitte | Area : 3500 sq. ft | |||
|---|---|---|---|---|
| Sl. No | Equipment | Make | Quantity | Capacity / Specification |
| 01 |
CNC - VTL Model: CY-750V |
M/s You-Ji, Taiwan and Cosmos | 6 Nos. |
Max. Swing Dia. - 1000 mm Swing over saddle - 750 mm Turret Face to Chuck Face - 850 mm |
| 02 |
CNC - VTL Model: BVL 800HG |
M/s BFW, India | 1 No |
Max. Swing Dia. - 1100 mm Swing over saddle - 820 mm Turret Face to Chuck Face - 825 mm |
| 03 |
CNC - VTL Model: VTL 400XL |
M/s ACE, India | 5 Nos. |
Max. Swing Dia. - 1000 mm Swing over saddle - 650 mm Turret Face to Chuck Face - 800 mm |
| 04 |
CNC - VMC Agni BM V 45TC20 |
M/s BFW, India | 3 Nos. |
Table 900x450 mm Axis: X = 800 mm, Y = 450 mm, Z = 500 mm |
| 05 |
CNC - VMC CVM-800 |
M/s Cosmos | 3 Nos. |
Table 1000x500 mm Axis: X = 800 mm, Y = 500 mm, Z = 500 mm |
